LY523 10.1inch
● Android 15 ，need to pass GMS
● Rugged: IP68 rated, and 1.2 m drop
● Long-lasting embedded 6000mAh battery
● Bluetooth , Wi-Fi
● Thin & lightweight design for easy portability
Android 15
A523 Quad-core ARM CortexTM-A55
10.1”inch
4GB RAM+64GB ROM
Applications
Specifications
| Product model | ： LY523 10.1inch | ||||||||||
| Mold picture |
| ||||||||||

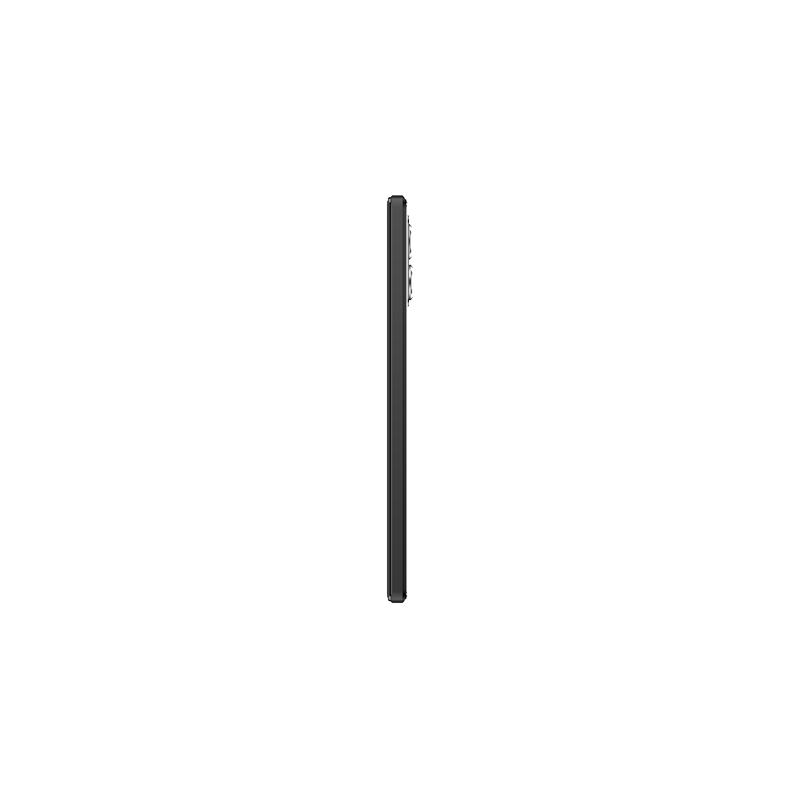

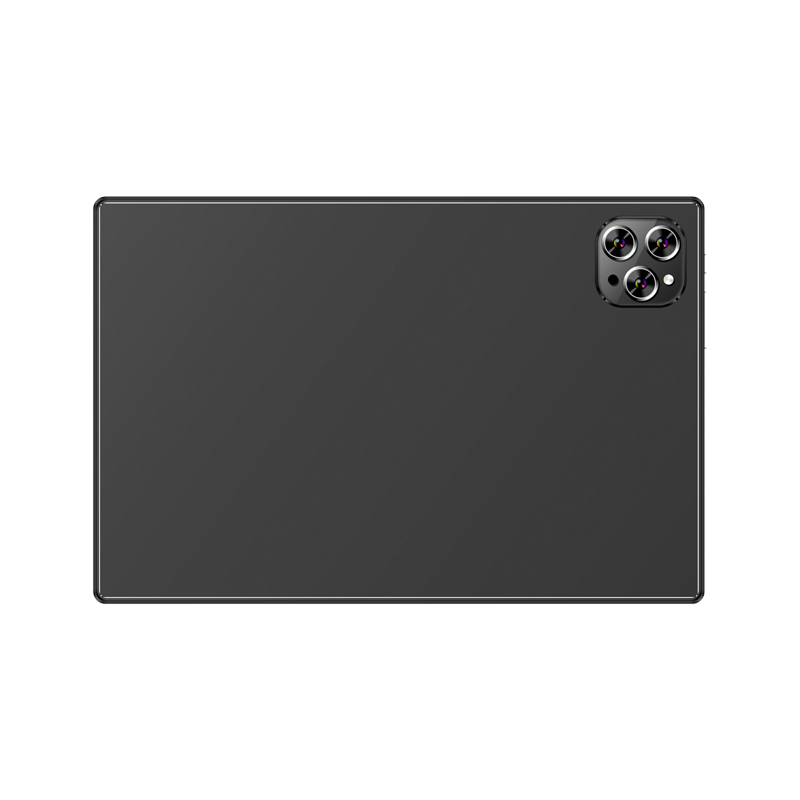

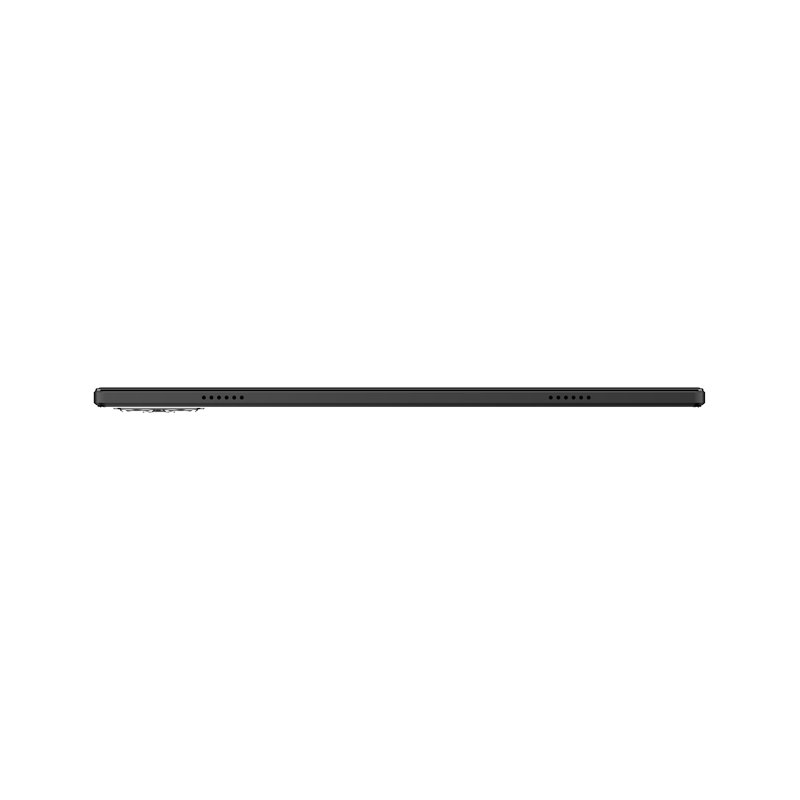

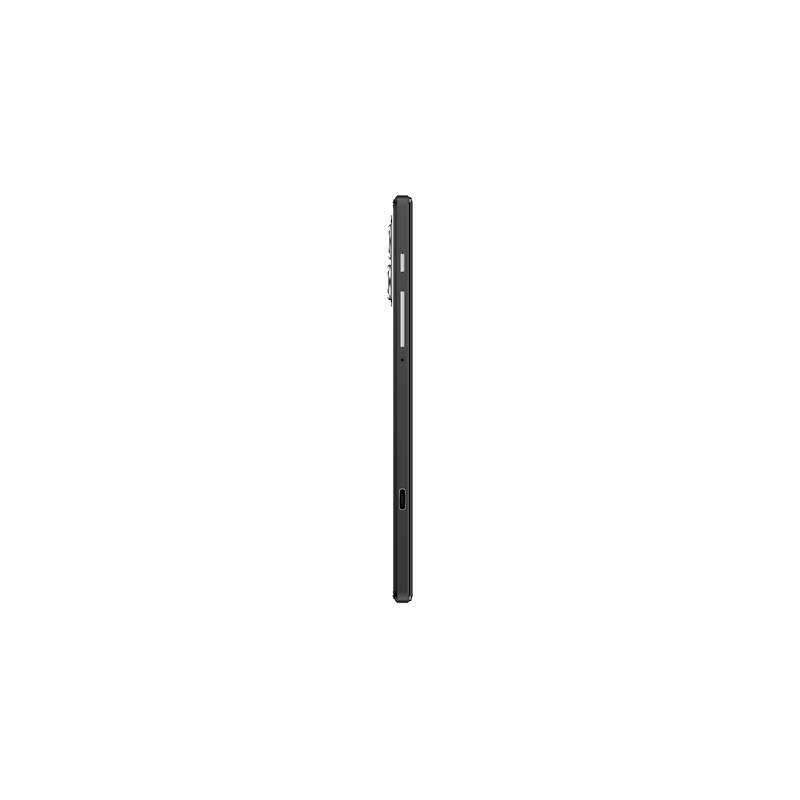

| Product appearance | |||||||||||
| type | detail | description | |||||||||
| Product form | Product form | Horizontal plates | |||||||||

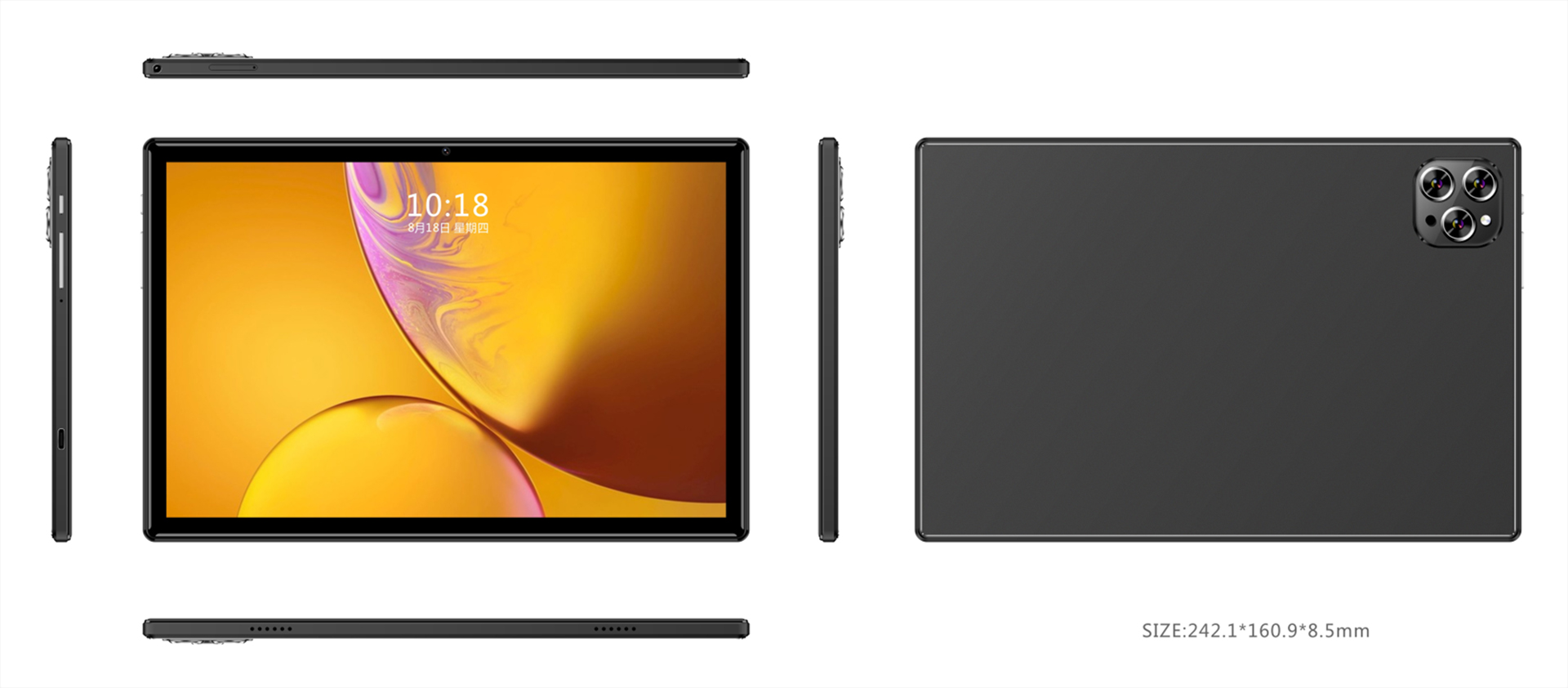

| Exterior dimensions | 242.1*160.9*8.5mm | ||||||||||
| LCD | Screen size | 10.1 inches | |||||||||
| Screen resolution | mipi 800*1280 | ||||||||||
| TP | touch screen | COB 51pin GSL3676 | |||||||||
| battery | type | cobalt batteries | |||||||||
| capacity | cobalt batteries 6000 mah | ||||||||||
| Battery life | Test conditions: Connect to WiFi, turn on Bluetooth, brightness and volume are 50%. Play local 720P video for 8 hours with smooth curves and no jumping points | ||||||||||
| System hardware configuration | |||||||||||
| type | detail | description | |||||||||
| CPU | CPU | ●A523 Quad-core ARM CortexTM-A55 ●lt integrates octa-core, up to 2.0 GHz ●Single RISC-V CPU.up to 200MHz | |||||||||
| GPU | GPU | ●ARM G57 MC01 ●Supports OpenGL ES 3.2/2.0/1.0,Vulkan 1.1,OpenCL2.0 | |||||||||
| Multimedia support (Hardware decoding) | Image | JPG, JPEG, GIF, BMP, PNG | |||||||||
| Video | asf,avi,flv,f4v,mlv,mov,mp4/m4v,vob,mpg,pmp,ts/tp,m2ts,mts,wmv,webm,3GP | ||||||||||
| audio | AMR,MP1/MP2/MP3,OGG,WAV,AAC,APE,FLAC,DSD,G729,ALAC | ||||||||||
| Power management chip | Power management chip | AXP717C | |||||||||
| RAM | RAM | Supports lpddr4 4G | |||||||||
| ROM Flash | ROM | Supports EMMC 64G | |||||||||
| Camera | Front camera | 2.0MP | |||||||||
| Rear camera | 5.0MP With flash | ||||||||||
| loudspeaker | built | Built-in 8Ω/1W speaker x 2 Class K audio amplifier AW8737FCR | |||||||||
| Mitou | built | Built-in Analog Mic x1 | |||||||||
| G-sensor | built | Gravity acceleration sensor | |||||||||
| Network connectivity | |||||||||||
| type | detail | description | |||||||||
| WIFI&BT | WIFI module | AW869A WIFI+BT5.0 MODULE,802.11a/b/g/n/ac/ax,2.4G/5.0G | |||||||||
| Interface configuration | |||||||||||
| type | detail | description | |||||||||
| TF memory card holder | Expand external storage | TF card | |||||||||
| USB interface | TYPE-C Data transmission | TYPE-C 2.0 (Charging, Upgrading and Data Transfer) | |||||||||
| Headphone jack | Audio output | External FPC adapter ∮3.5mm standard headphone jack | |||||||||
| keyboard | Input device | USB expansion with wired/wireless support | |||||||||
| mouse | Input device | USB expansion with wired/wireless support | |||||||||
| Standard accessories | |||||||||||
| type | detail | description | |||||||||
| 3.5" headphones | Standard | Standard stereo headphones | |||||||||
| Power adapter | Standard | input：AC100-240V.50-60HZ，output：Type-C 5V 2A | |||||||||
| Software configuration | |||||||||||
| type | detail | description | |||||||||
| operating system | Operating system version | Android 15 ，need to pass GMS | |||||||||
| language | More than Chinese words of support | ||||||||||
| System software | Gmail | Gmail | |||||||||
| Browser | Chrome | ||||||||||
| Calculator | Calculator | ||||||||||
| Calendar | Calendar | ||||||||||
| Clock | Clock | ||||||||||
| Assistant | Assistant | ||||||||||
| Photos | Photos | ||||||||||
| Camera | Camera | ||||||||||
| YT Music | YT Music | ||||||||||
| FileBrowser | Files | ||||||||||
| Settings | Settings | ||||||||||
| Contacts | Contacts | ||||||||||
| Meet | Meet | ||||||||||
| Maps | Maps | ||||||||||
| Drive | Drive | ||||||||||
| Contacts | Contacts | ||||||||||
| play Store | play Store | ||||||||||
| Sonud Recorder | Sonud Recorder | ||||||||||
| YouTube | YouTube | ||||||||||
| Safety | Safety | ||||||||||
| Find Device | Find Device | ||||||||||
| Videos | Videos | ||||||||||
| Drive | Drive | ||||||||||
| Gboard | Gboard | ||||||||||
| Google TV | Google TV | ||||||||||
| Keep Notes | Keep Notes | ||||||||||
| Meet | Meet | ||||||||||
| Play Books | Play Books | ||||||||||
| YT Kids | YT Kids | ||||||||||
| Packaging accessories | |||||||||||

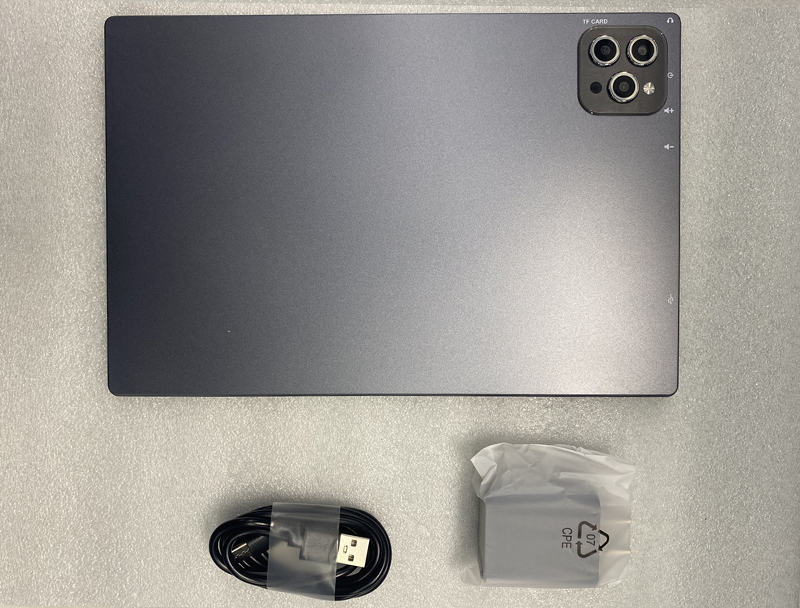

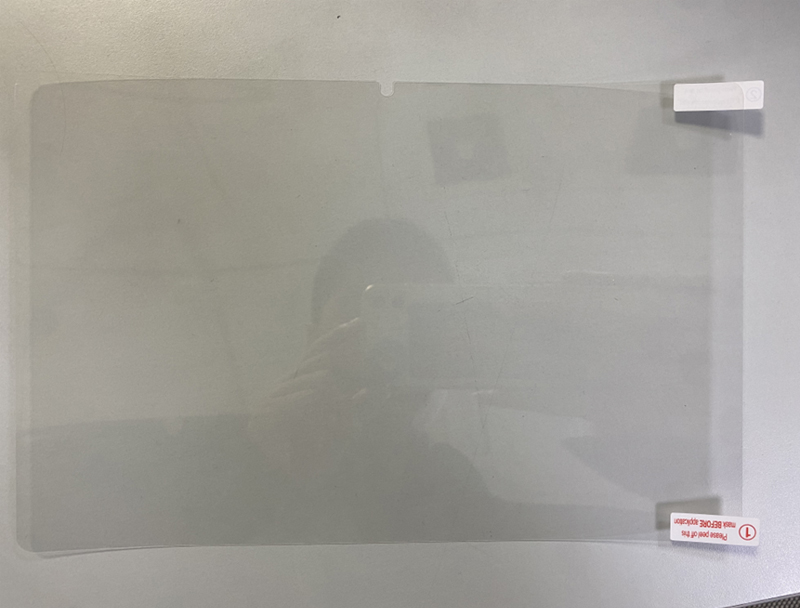

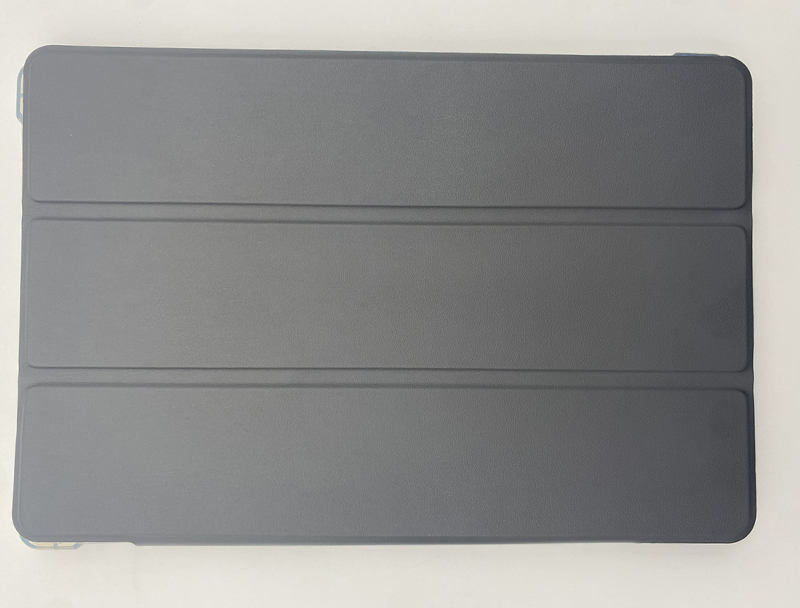

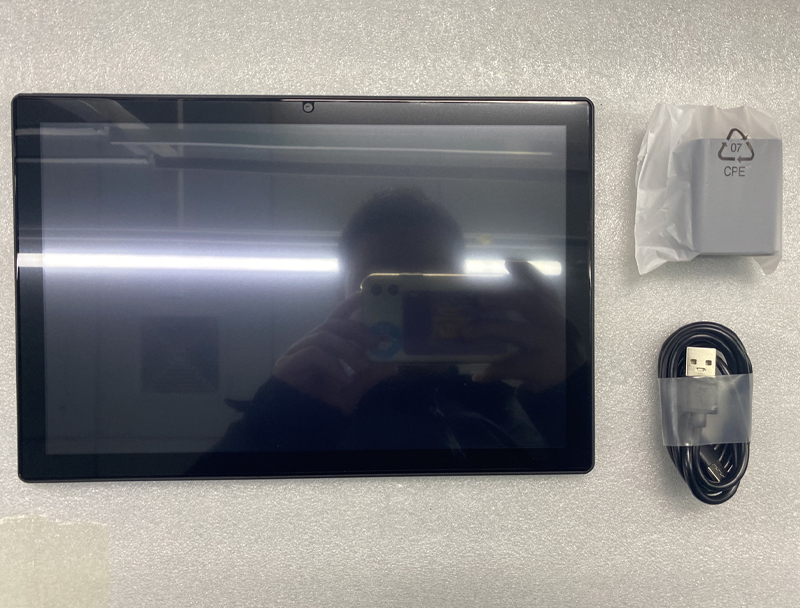

| Standard accessories | 1*Charging head, 1*Charging cable, 1*Instruction manual, 1*Leather case, 1*Protective film (the protective film is attached to the tablet) | ||||||||||
